ANSI B16.47 Series B Flanges Manufacturer in India

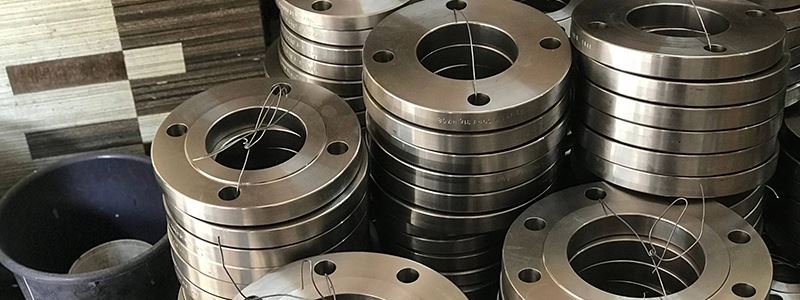

ANSI B16.47 Series B Flanges Manufacturer

ANSI B16.47 Series B Flanges Manufacturer in India - New Era Pipes & Fittings

New Era Pipes & Fittings is India's largest Manufacturer of ANSI B16.47 Series B Flanges. ANSI ANSI B16.47 Series B Flanges is one of our most popular Metal Market goods. ANSI B16.47 Series B Flanges come in a range of sizes, shapes, and dimensions, and they can also be modified to match our customer's specific requirements. We deliver ANSI B16.47 Series B Flanges in the proper number and with suitable quality to meet the needs of various industrial sectors.

ANSI B16.47 Series B Flanges Manufacturer, ANSI B16.47 Series B Flanges Exporter, ANSI/ASME B16.47 Flange Series B, ANSI B16.47 Series B Threaded Flange, ANSI B16.47 Series B Flange Stockist in India

New Era Pipes & Fittings is primarily concerned with industry requirements. We create these ANSI B16.47 Series B Flanges with added advantages and functionality to fulfill the industrial needs and demand. To maintain consistency and verify that all conditions are met, they conduct destructive and non-destructive inspections. There are different types of ANSI B16.47 Series B Flanges such as ANSI B16.47 Series B Slip-on Flange, ANSI B16.47 Series B Blind Flange, ANSI B16.47 Series B Weld Neck Flange and many more.

Other Types of Flanges

ANSI B16.47 Series B Flanges Specifications

ANSI B16.47 Series B Flanges Specifications
Standard ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
Size 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Grades
Stainless Steel ASTM /ASME A/SA 213 / 249 / 269 / 312 / 358 CL. I to V – 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L .
Duplex Steel ASTM/ASME A/SA 789, 790
– UNS NO S 31803, S 32205, S 32550, S 32750, S 32760.
Carbon Steel ASTM A106 Gr. A, B & C API 5L Gr. A / B, X42 ,X52 ,X60 ASTM A 53 Gr. A/B
Alloys Steel ASTM /ASME A/SA 213 / 335 / 691 – P5,P9,P11,P12,P22,P91
Nickel Alloys Nickel Alloys 200, Nickel Alloys 201
Hastelloy
 Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Brass
 C 27000, C 27200, C 28000
Aluminium
 6063, 6061T6/T651, 6082 T6/T651, 5052, 5083, 5086, 7075, 1100, 2014, 2024
SMO 254
 SMO 254

Applications and Uses of ANSI B16.47 Series B Flanges

  • ANSI B16.47 Series B Flanges Uses for Pipeline engineering
  • ANSI B16.47 Series B Flanges Uses for Oil & gas industry
  • ANSI B16.47 Series B Threaded Flanges Uses for Mechanical engineering
  • ANSI B16.47 Series B Flanges for Plant engineering
  • ANSI B16.47 Series B Slip On Flanges Uses for Marine industry
  • ANSI B16.47 Series B Flanges Uses for the Chemical industry
  • ANSI B16.47 Series B Socket Weld Flanges Uses for Petrochemical industry
  • ANSI B16.47 Series B Flanges Uses for the Power industry
  • ANSI B16.47 Series B Flanges Uses for Aerospace, Water Treatment Plant, Water Desalination Plant

Other Products :

ANSI B16.47 Series B Flanges Dimensions

RATING NOMINAL PIPE SIZE
mm		 OD FLANGE
O		 FLANGE THICKNESS WELD NECK
QA		 FLANGE THICKNESS BLIND
QB		 OVERALL HEIGHT
YY		 RF DIAMETER
R		 HUB DIAMETER
X		 NECK DIAMETER
AW		 PCD
P		 NO. OF BOLT HOLES
N		 DIAMETER
HD
150 650 785 41.4 44.6 89 711 684 661.9 744.5 36 22.3
700 835 44.6 47.8 96 762 735 712.7 795.3 40 22.3
750 885 44.6 50.9 100 813 787 763.5 846.1 44 22.3
800 940 46.2 54.1 108 864 840 814.3 900.1 48 22.3
850 1005 49.3 57.3 111 921 892 865.1 957.3 40 25.4
900 1055 52.5 58.9 118 972 945 915.9 1009.6 44 25.4
950 1125 54.1 63.6 124 1022 997 968.2 1070.0 40 28.5
1000 1175 55.7 66.8 129 1080 1049 1019.0 1120.8 44 28.5
1050 1225 58.9 68.4 134 1130 1102 1069.8 1171.6 48 28.5
1100 1275 60.5 71.6 137 1181 1153 1120.6 1222.4 52 28.5
1150 1340 62.0 74.6 145 1235 1205 1171.4 1284.3 40 31.7
1200 1390 65.2 77.9 150 1289 1257 1222.2 1335.1 44 31.7
300 650 865 89.0 89.0 145 737 702 665.2 803.3 32 34.9
700 920 89.0 89.0 150 787 756 716.0 857.2 36 34.9
750 990 93.7 93.6 158 845 813 768.4 920.8 36 38.1
800 1055 103.2 103.2 169 902 864 819.2 977.9 32 41.2
850 1110 103.2 103.2 173 953 918 870.0 1031.9 36 41.2
900 1170 103.2 103.2 181 1010 965 920.8 1089.0 32 44.4
950 1220 111.2 111.2 193 1060 1016 971.6 1139.8 36 44.4
1000 1275 115.9 115.9 199 1114 1067 1022.4 1190.6 40 44.4
1050 1335 119.1 119.1 205 1168 1118 1074.7 1244.6 36 47.6
1100 1385 127.1 127.1 215 1219 1173 1125.5 1295.4 40 47.6
1150 1460 128.6 130.1 223 1270 1229 1176.3 1365.2 36 50.8
1200 1510 128.6 134.9 224 1327 1278 1227.1 1416.0 40 50.8
600 650 890 111.2 111.3 181 727 698 660.4 806.4 28 44.4
700 950 115.9 115.9 190 784 752 711.2 863.6 28 47.6
750 1020 125.5 127.0 205 841 806 762.0 927.1 28 50.8
800 1085 130.2 134.9 216 895 860 812.8 984.2 28 53.9
850 1160 141.3 144.2 233 953 914 863.6 1054.1 24 60.3
900 1215 146.1 150.9 243 1010 968 914.4 1104.9 28 60.3
900 650 1020 135.0 154.0 259 762 743 660.4 901.7 20 66.6
700 1105 147.7 166.7 276 819 797 711.2 971.6 20 73.0
750 1180 155.6 176.1 289 876 851 762.0 1035.0 20 79.3
800 1240 160.4 186.0 303 927 908 812.8 1092.2 20 79.3
850 1315 171.5 195.0 319 991 962 863.6 1155.7 20 85.7
900 1345 173.1 201.7 325 1029 1016 914.4 1200.2 24 79.3

Types of ANSI B16.47 Series B Flanges

ANSI B16.47 Series B Flanges Manufacturer in India

ANSI B16.47 Series B Flanges Manufacturer in India

ANSI B16.47 Series B Flanges Supplier in India

ANSI B16.47 Series B Flanges Supplier in India

Get a Quote

+91 77387 24848

info@newerapipefittings.com

+91 22 6743 8363


ANSI B16.47 Series B Flanges Additional Information

  1. ANSI B16.47 Series B Flanges Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
  2. ANSI B16.47 Series B Flanges Packaging: ANSI B16.47 Series B Flanges is packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
  3. ANSI B16.47 Series B Flanges Port of Dispatch: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
  4. ANSI B16.47 Series B Flanges Tax:18% GST

ANSI B16.47 Series B Flanges Suppliers in India:-

The dependability and performance of ANSI B16.47 Series B Flanges have made New Era Pipes & Fittings one of India's leading manufacturers. Every month, we supply ANSI B16.47 Series B Flanges to Indian ports in the amount of fifty-five containers to various customers. In India, we supply products in a variety of cities.

City We Supply ANSI B16.47 Series B Flanges
Bengaluru Mumbai Chennai Hyderabad Kolkata Pune
New Delhi Ahmedabad Jaipur Surat Salem Gandhinagar
Bhiwandi Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhubaneswar Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Visakhapatnam Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Noida
Agra Bhagalpur Jamshedpur Bhilai Lucknow Kanpur
Thane Bhopal Sri City Bareilly Hosdurg Pithampur

ANSI B16.47 Series B Flanges Exporter in India:-

New Era Pipes & Fittings have positioned us as one of India's most promising and leading exporters of ANSI B16.47 Series B Flanges. We have regular shipments to several nations for our newly acquired clientele. Our ready stock of ANSI B16.47 Series B Flanges enables us to transport and meet the needs and requests of our customers.

Countries we export Buttweld 45° Degree Elbow worldwide:
Marawah Abu Dhabi Sharjah Al Ain Ajman
Ras Al Khaimah Fujairah Umm al-Quwain Dibba Al-Fujairahs Khor Fakkan
