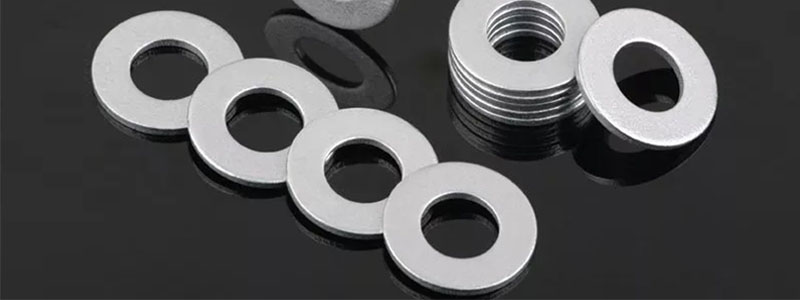

Washer Manufacturer in India - New Era Pipes & Fittings
New Era Pipes & Fittings is a well-known Washer Manufacturer in India. We provide high-quality bolts to a variety of sectors worldwide. Washer come in many different kinds of sizes, dimensions, and shapes, and can also be customized to meet the needs of the customer.
Leading Washer Supplier in India - Description
New Era Pipes & Fittings is a well-known name around the globe and our quality Washer are in huge demand internationally. Our company is one of the largest Washer Supplier in India. We offer a wide range of Fasteners Manufacturers, including Washer, Anchor bolts, Fasteners Supplier, Mild Steel Bolt Nut, High Tensile Washer, Hex Washer Washer, Washer, Screw, Washer, and more.
New Era Pipes & Fittings is primarily concerned with industry requirements. We create these ASTM fasteners with added advantages and functionality to fulfill the industrial needs and demand. To maintain consistency and verify that all conditions are met, they conduct destructive and non-destructive inspections. We specialize in manufacturing Fasteners with superior mechanical properties, including high tensile strength, excellent resistance, and good strength. We are also regarded as one of the major Manufacturers of Washer.
Washer Manufacturer & Supplier - Specifications
| Washer | Specifications |
|---|---|
| Washer Size | M02 to M33, Custom Sizes |
| Washers Length | 3 mm to 200 mm |
| Washer | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Washers | DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 2016, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1 |
| Form of Washers | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Washer | Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Washers | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Surface Coating | Ptfe Coated Washers Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Washers finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Top Selling Washer types :
Washer Supplier - Chemical Composition
Discover the chemical composition of Washer allows customers to appreciate the alloy’s excellent properties, Ensure superior performance and durability with our trusted fastener materials.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 Washer | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L Washer | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H Washer | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
Washer Supplier - Mechanical Properties
The Mechanical Properties of bolts, including their strength and resistance to corrosion, are highly valued in various industries, such as chemical, oil and gas. Washer Manufacturer and Washer Supplier play a critical role in ensuring that these mechanical properties are carefully engineered and maintained during the manufacturing process
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 Washer | 515 | 205 | 40 | 95 | 217 |
| 316L Washer | 485 | 170 | 40 | 95 | 217 |
| 316H Washer | 515 | 205 | 40 | 95 | 217 |
Washer Size Chart
The Size Chart of Washers, including their Nominal Size, Washer Diameter, are highly valued in various industries, such as chemical, oil, and gas.
| Nominal Size (Nominal Thread dia., d) |
d1 | d2 | h | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Clearance Hole | Outside dia. | Thickness | |||||||
| nom. (min) |
max. | nom. (max.) |
min. | nom. | max. | min. | |||
| 1.6 | 1.70 | 1.84 | 4.0 | 3.7 | 0.3 | 0.35 | 0.25 | ||
| 2 | 2.20 | 2.34 | 5.0 | 4.7 | 0.3 | 0.35 | 0.25 | ||
| 2.5 | 2.70 | 2.84 | 6.0 | 5.7 | 0.5 | 0.55 | 0.45 | ||
| 3 | 3.20 | 3.38 | 7.00 | 6.64 | 0.5 | 0.55 | 0.45 | ||
| 3.5* | 3.70 | 3.88 | 8.00 | 7.64 | 0.5 | 0.55 | 0.45 | ||
| 4 | 4.30 | 4.48 | 9.00 | 8.64 | 0.8 | 0.9 | 0.7 | ||
| 5 | 5.30 | 5.48 | 10.00 | 9.64 | 1 | 1.1 | 0.9 | ||
| 6 | 6.40 | 6.62 | 12.00 | 11.57 | 1.6 | 1.8 | 1.4 | ||
| 8 | 8.40 | 8.62 | 16.00 | 15.57 | 1.6 | 1.8 | 1.4 | ||
| 10 | 10.50 | 10.77 | 20.00 | 19.48 | 2 | 2.2 | 1.8 | ||
| 12 | 13.00 | 13.27 | 24.00 | 23.48 | 2.5 | 2.7 | 2.3 | ||
| 14* | 15.00 | 15.27 | 28.00 | 27.48 | 2.5 | 2.7 | 2.3 | ||
| 16 | 17.00 | 17.27 | 30.00 | 29.48 | 3 | 3.3 | 2.7 | ||
| 18* | 19.00 | 19.33 | 34.00 | 33.38 | 3 | 3.3 | 2.7 | ||
| 20 | 21.00 | 21.33 | 37.00 | 36.38 | 3 | 3.3 | 2.7 | ||
| 22* | 23.00 | 23.33 | 39.00 | 38.38 | 3 | 3.3 | 2.7 | ||
| 24 | 25.00 | 25.33 | 44.00 | 43.38 | 4 | 4.3 | 3.7 | ||
| 27* | 28.00 | 28.33 | 50.00 | 49.38 | 4 | 4.3 | 3.7 | ||
| 30 | 31.00 | 31.39 | 56.00 | 55.26 | 4 | 4.3 | 3.7 | ||
| 33* | 34.00 | 34.62 | 60.0 | 58.8 | 5 | 5.6 | 4.4 | ||
| 36 | 37.00 | 37.62 | 66.0 | 64.8 | 5 | 5.6 | 4.4 | ||
| 39* | 42.00 | 42.62 | 72.0 | 70.8 | 6 | 6.6 | 5.4 | ||
| 42 | 45.00 | 45.62 | 78.0 | 76.8 | 8 | 9 | 7 | ||
| 45* | 48.00 | 48.62 | 85.0 | 83.6 | 8 | 9 | 7 | ||
| 48 | 52.00 | 52.74 | 92.0 | 90.6 | 8 | 9 | 7 | ||
| 52* | 56.00 | 56.74 | 98.0 | 96.6 | 8 | 9 | 7 | ||
| 56 | 62.00 | 62.74 | 105.0 | 103.6 | 10 | 11 | 9 | ||
| 60* | 66.00 | 66.74 | 110.0 | 108.6 | 10 | 11 | 9 | ||
| 64 | 70.00 | 70.74 | 115.0 | 113.6 | 10 | 11 | 9 | ||
Applications and Uses of Washer
- Washer used in Transporting materials
- Stainless Steel Washer used in the Automotive industry
- Washer used in Homes and buildings
- Washer used in Sewerage systems, industrial water lines
- Washer used in Plumbing
- Alloy Washer used in Food Processing Industry
- Washer used in Paper & Pulp Industry
- High Tensile Washer used in Food Industry
- Washer Uses for Water Treatment Plant
- Washer Uses for Water Desalination Plant
Other Products :
+91 77387 24848Washer Additional Information
- Washer Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
- Washer Packaging: Washer is packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
- Washer Port of Dispatch: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
- Washer Tax:18% GST
