SA182 F22 Flanges Manufacturer & Supplier in India

SA182 F22 Flanges Manufacturer, Supplier, and Stockist in India - New Era Pipes & Fittings

New Era Pipes & Fittings is one of the largest SA182 F22 Flanges Manufacturer in India. Slip on Flanges in accordance with ASTM A182 Grade F22 are used to perfectly connect two seamless pipes. The pipes can shift to the right location by sliding over the flange and over it.

Additionally, it offers simple access for maintenance, inspection, or modification. Flanges are often screwed or welded. A gasket is placed in between the two Flanges before being bolted together to create a Flanged junction. Applications in the industrial, architectural, and transportation fields can easily use ASTM A182 F22 Flanges.

SA182 F22 Flanges Manufacturer, Alloy Steel F22 Flanges Stockist, ASME SA182 F22 Supplier, A182 F22 Flanges Class 1, 2, 3 Supplier, SA182 F22 Flanges Stockist in India

New Era Pipes & Fittings is primarily concerned with industry requirements. We create these ASTM A182 F22 Flanges with added advantages and functionality to fulfill the industrial needs and demand. Also, we are well known SA182 F22 Flanges Supplier in India.

One of the key features of A182 Gr F22 Carbon Steel Flanges is their resistance to cracking and failure under extreme pressure and temperature conditions. We are also regarded as one of the major SA182 F91 Flanges Manufacturer in India.

ASME SA182 F22 Flanges, SA182 F22 Flanges Size & Specifications

ASTM A182 F22 Flanges are available in various sizes and specifications to suit different applications. A182 Gr F22 Carbon Steel Flanges process creates a dense, uniform structure that provides the fittings with exceptional strength and durability.

Specifications :	Alloy Steel ASTM A182 F22 Flanges
Alloy Steel F22 Flanges Standards	ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
SA 182 F22 Material Grade	ASTM / ASME A182 F1 / F5 / F9 / F22 / F12 / F22 / F91
AS A182 F22 RTJ Flanges Wall Thickness	SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS.
A182 F22 Material Class/ Pressure	150#, 300#, 400 #, 600#, 900#, 1500# & 2500#
A182 Gr F22 Flanges Dimension	150#, 300#, 600#, 900#, 1500#, 2500#. PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Grade F22 Flanges Face Type :	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A182 F22 Pipe Flanges Size	½” to 36″

Top Selling SA182 F22 Flanges

ASTM A182 F22 Flanges is a low-temperature Carbon Steel Flanges material that is commonly used in various industries such as oil and gas, chemical processing, and petrochemicals. Also, we are the leading SA182 F22 Flanges Manufacturer in India. ASTM A182 F22 Class 1 Flange are available in various types, including:

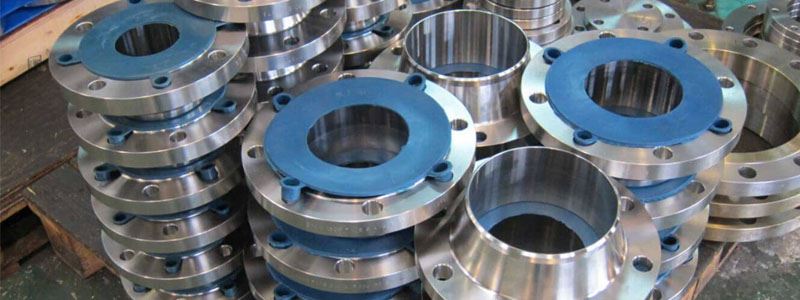

SA182 F22 Flanges Manufacturer

SA182 F22 Flanges
Supplier

SA182 F22 Flanges
Stockist

ASTM A182 F22 Flanges Chemical Composition

The chemical composition of Carbon Steel F22 Flanges is critical in determining the material's strength, durability, and corrosion resistance.

Grade	C	Mn	Si	S	P	Cr	Mo
A182 F22	0.05 - 0.15	0.3 - 0.6	0.5	0.03	0.045	0.8 - 1.25	0.044 - 0.65

ASTM A182 F22 Flanges Mechanical Properties

The mechanical properties of A182 Gr F22 Carbon Steel Flanges are critical in determining the material's strength, ductility, and toughness. The mechanical properties of Carbon Steel F22 Flanges are as follows:

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation %
A182 F22	205	415	20

ASTM A182 F22 Flanges Size Chart

Products		Size
ASTM A182 Alloy Steel F22 Slip-On Flanges	Chrome Moly Alloy A182 F22 Threaded Flanges	Sizes 1/8″ – 36″ Raised Face or Flat Face
ASTM A182 Grade Alloy Steel F22 Blind Flanges	ASTM A182 Alloy Steel F22 Reducing Flanges
ASTM A182 Gr F22 Alloy Steel Ring Type Joint Flanges	ASTM A182 Alloy Steel F22 Square Flanges
ASTM A182 F22 Alloy Steel Weld Neck Flanges	ASTM A182 Alloy Steel F22 Socket Weld Flanges
ASTM A182 Grade F22 Alloy Steel Lap Joint Flanges	ASTM A182 Alloy Steel F22 Plate Flanges
ASTM A182 Gr F22 Alloy Steel Orifice Flanges	ASTM A182 Alloy Steel F22 Forged Flanges

ASTM A182 F22 Flanges Working Pressure Class

TEMP. C	150#	300#	400#	600#	900#	1500#	2500#
-29 to 38	15.9	41.4	55.2	82.7	124.1	206.8	344.7
50	15.3	40	53.4	80	120.1	200.1	333.5
100	13.3	34.8	46.4	69.6	104.4	173.9	289.9
150	12	31.4	41.9	62.8	94.2	157	261.6
200	11.2	29.2	38.9	58.3	87.5	145.8	243
250	10.5	27.5	36.6	54.9	82.4	137.3	228.9
300	10	26.1	34.8	52.1	78.2	130.3	217.2
325	9.3	25.5	34	51	76.4	127.4	212.3
350	8.4	25.1	33.4	50.1	75.2	125.4	208.9
375	7.4	24.8	33	49.5	74.3	123.8	206.3
400	6.5	24.3	32.4	48.6	72.9	121.5	202.5
425	5.5	23.9	31.8	47.7	71.6	119.3	198.8
450	4.6	23.4	31.2	46.8	70.2	117.1	195.1

Get a Quote

+91 77387 24848

info@newerapipefittings.com

+91 22 6743 8363

SA182 F22 Flanges Additional Information

1. ASTM A182 F22 Flanges Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
2. ASTM A182 F22 Flanges Packaging: LTCS A182 F22 Class 1 Flange is packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
3. Carbon Steel F22 Flanges Port of Dispatch: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
4. Carbon Steel F22 Flanges Tax:18% GST
