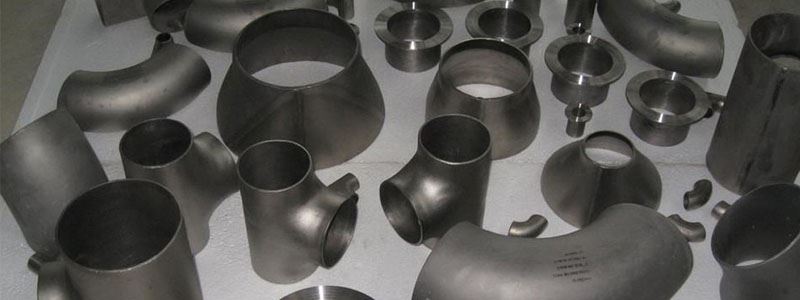

SA234 WP5 Pipe Fittings Manufacturer

SA234 WP5 Pipe Fittings Manufacturer, Supplier, and Stockist in India - New Era Pipes & Fittings

New Era Pipes & Fittings is one of the largest SA234 WP5 Pipe Fittings Manufacturer in India. We deliver SA234 Gr WP5 Alloy Steel Buttweld Fittings in the proper number and with suitable quality to meet the needs of various industrial sectors. ASTM A234 WP5 Pipe Fittings is one of our most popular Metal Market goods.

ASTM A234 WP5 Pipe Fittings typically made to withstand high pressure and temperature environments, and can be used in a variety of corrosive and non-corrosive environments. The ASTM A234 WP5 can be welded, seamless or fabricated. There are different types of the Pipe Fittings available such as the couplings, unions, bends, plugs, caps and elbows.

SA234 WP5 Pipe Fittings Manufacturer, A234 Gr WP5 Reducing Tee Stockist, SA 234 WP5 End Cap Seamless Supplier, Alloy Steel WP5 Fittings Supplier, SA234 WP5 Pipe Fittings Stockist in India

New Era Pipes & Fittings is primarily concerned with industry requirements. We create these ASTM A234 WP5 Pipe Fittings with added advantages and functionality to fulfill the industrial needs and demand. Also, we are well known SA234 WP5 Pipe Fittings Supplier in India.

One of the key features of ASTM A234 WP5 Fittings is their resistance to cracking and failure under extreme pressure and temperature conditions. We are also regarded as one of the major SA234 WP9 Pipe Fittings Manufacturer in India.

ASME SA234 WP5 Buttweld Elbow, SA234 WP5 Pipe Fittings Size & Specifications

ASTM A234 WP5 Pipe Fittings are available in various sizes and specifications to suit different applications. ASTM A234 WP5 CL1 Pipe Fittings process creates a dense, uniform structure that provides the fittings with exceptional strength and durability.

ASTM A234 WP5 Pipe Fittings Specifications
Thickness Range: Sch 20S To SCH 180S.
Size Tolerance: 1⁄₂ Inch To 48 Inch
Dimensional Format: ASME B16.9, MSS-SP-43 Type B, ASME B16.28, JIS B2312, JIS B2313, MSS-SP-43 Type A
High Temperature Class 150 LBS To Class 2500 LBS.
Dimensions Standard EN, JIS, NPT, DIN, ISO
Different Types Of Fittings Elbow, Tee, Reducer, Cap, Stub End, Bend, Adapter, Wye, Cross,
Weld Fittings Connection Types Clamp End / Flange/ End Bell/ Threaded

Top Selling SA234 WP5 Pipe Fittings

ASTM A234 WP5 Pipe Fittings is a low-temperature Carbon Steel ASTM A234 WP5 CL1 Pipe Fittings material that is commonly used in various industries such as oil and gas, chemical processing, and petrochemicals. Also, we are the leading SA234 WP5 Pipe Fittings Manufacturer in India. SA234 WP5 Fittings are available in various types, including:

ASTM A234 WP5 Pipe Fittings Chemical Composition

The chemical composition of ASTM A234 WP5 CL1 Pipe Fittings is critical in determining the material's strength, durability, and corrosion resistance.

Gr C Mn Si S P Cr Mo
ASTM A234 WP5 Pipe Fittings ≤0.15 ≤0.6 ≤0.5 ≤0.04 ≤0.03 4-6 0.44-0.65

ASTM A234 WP5 Pipe Fittings Mechanical Properties

The mechanical properties of ASTM A234 WP5 Pipe Fittings are critical in determining the material's strength, ductility, and toughness. The mechanical properties of SA234 WP5 Pipe Fittings are as follows:

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
ASTM A234 WP5 Pipe Fittings 415 - 585 ≥205 ≥20

ASTM A234 WP5 Pipe Fittings Weight Chart

DN (Normal Pipe Size) For ASME B16.9

Schedule 10S

Schedule 40S

Schedule 80S

Elbow 90 Deg

Elbow 45 Deg B16.9 Equal Tee

Elbow 90 Deg

Elbow 45 Deg

B16.9 Equal Tee

Elbow 90 Deg Elbow 45 Deg

B16.9 Equal Tee

8

0.02

0.01

0.03

0.03

0.02

0.06

0.04

0.03

0.07

10

0.03

0.02

0.05

0.03

0.02

0.03

0.06

0.04

0.09

15

0.06

0.03

0.09

0.08

0.04

0.10

0.10

0.05

0.14

20

0.07

0.03

0.13

0.08

0.04

0.17

0.11

0.05

0.20

25

0.14

0.08

0.28

0.15

0.11

0.29

0.22

0.14

0.38

32

0.23

0.11

0.49

0.26

0.17

0.59

0.40

0.23

0.68

40

0.30

0.17

0.68

0.40

0.23

0.86

0.51

0.29

1.02

50

0.50

0.25

0.85

0.70

0.4

1.28

0.91

0.59

1.59

65

0.85

0.48

1.41

1.40

0.77

2.19

1.81

0.99

3.13

80

1.25

0.63

1.77

2.20

1.08

3.31

2.97

1.50

4.45

90

1.70

0.75

2.67

2.83

1.42

4.08

4.00

2.00

5.44

100

2.10

1.08

3.46

4.47

2.09

5.27

6.18

2.81

7.71

150

5.45

2.72

8.07

10.89

5.44

10.99

16.32

8.16

13.61

200

10.20

5.33

15.65

21.54

10.77

20.91

33.11

16.56

28.12

250

18.15

9.75

26.46

38.56

19.27

35.38

51.71

25.86

49.90

300

25.80

13.62

39.46

59.42

29.71

62.14

79.38

39.69

83.91


A234 WP5 CL1 Buttweld Fittings Dimensions

NPS (Normal Pipe Size) O.D. (Outside Daimeter) Elbow 90 Deg Elbow 45 Deg Return Elbow 180 Deg
(inch)   Long Radius Elbow Short Radius Long Radius Elbow Long Radius Elbow
  (millimeter/ MM) (inch./ Inches) Center to Face
(Inches)
Center to Face
(Inches)
Center to Face
(Inches)
Radius
(Inches)
Center to Center
(Inches)
Back to face
(Inches)
1/2 21.3 0.840 1 1/2 5/8   2 1 7/8
3/4 26.7 1.050 1 1/8 7/16   2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8   3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1   3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8

NPS (Normal Pipe Size) O.D. (Outside Daimeter) ASME B16.9 Pipe End Cap ASME B16.9 Straight Tee ASME B16.9 Straight Cross ASME B16.9 Long And Short Stub Ends
(inch./ Inches) (millimeter/ MM) (Inches) Length
(Inches)
Center to End
(Inches)
Center to End
(Inches)
Lap Diameter
(Inches)
Long Length
(Inches)
Short Length
(Inches)
1/2 21.3 0.840 1 1 1 3/8 3 2
3/4 26.7 1.050 1 1 1/8 1 11/16 3 2
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6


Applications and Uses of SA234 WP5 Pipe Fittings

  • Homes and buildings
  • Transporting materials
  • Automotive industry
  • Plumbing
  • Food Processing Industry
  • Paper & Pulp Industry
  • Water Treatment Plant
  • Water Desalination Plant

SA234 WP5 Pipe Fittings Additional Information

  1. ASTM A234 WP5 Pipe Fittings Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
  2. ASTM A234 WP5 Pipe Fittings Packaging: ASTM A234 WP5 Fittings is packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
  3. ASTM A234 WP5 Pipe Fittings Port of Dispatch: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
  4. ASTM A234 WP5 Pipe Fittings Tax:18% GST
