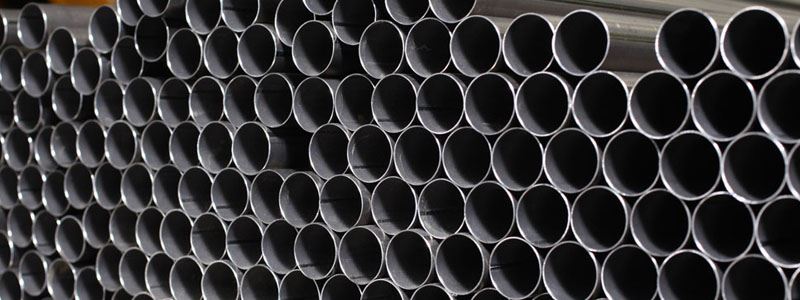

Stainless Steel Welded Pipes Manufacturer in India

Stainless Steel Welded Pipes Manufacturer In India

Stainless Steel Welded Pipes Manufacturer in India - New Era Pipes & Fittings

New Era Pipes & Fittings is a well known largest Stainless Steel Welded Pipes Manufacturer in India. Our Stainless Steel Welded Pipes are created by extrusion and rotary piercing. SS Welded Pipes, which are well-known for their exceptional functioning, unmatched quality, and sturdy development, are purchased from reputable organisations in the industry.

There are different types of SS Welded Pipes created using an operation called electric fusion welding. EFW is a method that is comparable to electric resistance welding, but uses an electric arc as opposed to resistance heating.

Stainless Steel Welded Pipes Manufacturer, SS DIN Welded Pipes Supplier, ASTM A312 Stainless Steel Welded Pipes Exporter, Stainless Steel Welded Pipes Stockist in India

New Era Pipes & Fittings is primarily concerned with industry requirements. We create these Stainless Steel Welded Pipes with added advantages and functionality to fulfill the industrial needs and demand. Also, we are well known Stainless Steel Welded Pipes Supplier in India. Electric resistance weld, a method, is used to create stainless steel Welded Pipes. We are also regarded as one of the major Stainless Steel ERW Pipes Manufacturer in India.

Stainless Steel Welded Pipes Size & Specifications

Stainless Steel Welded Pipes come in a variety of sizes and specifications, depending on the requirements of the application. Here are some common sizes and specifications of SS Welded Pipes:

Stainless Steel Welded Pipes Specifications
Range 1/8” NB to 36” NB, 1/4” OD to 36” OD
Outer Diameter 6.35 mm O.D to 114.3 mm O.D
Thickness 0.8 mm to 12.7 mm
Length up to 26 Meters
Specifications ASTM A312 / ASTM SA312
Types As Welded, EFW, ERW
End Plain End, Beveled End

Top Selling Stainless Steel Welded Pipes Types

There are various types of Stainless Steel Welded Pipes, each with their own unique properties and characteristics. Here are some of the most common types:

Stainless Steel Welded Pipes Manufacturer in India

Stainless Steel Welded Pipes Manufacturer in India

Stainless Steel Welded Pipes Supplier in India

Stainless Steel Welded Pipes Supplier in
India

Stainless Steel Welded Pipes Chemical Composition

Stainless Steel Welded Pipes are made from a variety of grades of Stainless Steel, each with its own unique chemical composition. Here are the chemical compositions of some of the commonly used grades of SS Welded Pipes:

Grade C Mn Si P S Cr Mo Ni N Ti Fe
304 min.           18.0   8.0
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10
304L min.           18.0   8.0
max. 0.030 2.0 0.75 0.045 0.030 20.0 12.0 0.10
304H min. 0.04         18.0   8.0
max. 0.010 2.0 0.75 0.045 0.030 20.0 10.5
SS 310   0.015 max 2 max 0.015 max 0.020 max 0.015 max 24.00 26.00 0.10 max 19.00 21.00 54.7 min
SS 310S   0.08 max 2 max 1.00 max 0.045 max 0.030 max 24.00 26.00 0.75 max 19.00 21.00 53.095 min
SS 310H   0.04 0.10 2 max 1.00 max 0.045 max 0.030 max 24.00 26.00   19.00 21.00 53.885 min
316 min.           16.0 2.03.0 10.0
max. 0.035 2.0 0.75 0.045 0.030 18.0 14.0
316L min.           16.0 2.03.0 10.0
max. 0.035 2.0 0.75 0.045 0.030 18.0 14.0
316TI   0.08 max 10.00 14.00 2.0 max 0.045 max 0.030 max 16.00 18.00 0.75 max 2.00 3.00
317   0.08 max 2 max 1 max 0.045 max 0.030 max 18.00 20.00 3.00 4.00       57.845 min
SS 317L   0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 20.00 3.00 4.00 11.00 15.00     57.89 min
SS 321   0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 19.00   9.00 12.00 0.10 max 5(C+N) 0.70 max
SS 321H   0.04 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 19.00   9.00 12.00 0.10 max 4(C+N) 0.70 max
347/ 347H   0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 20.00   9.0013.00
410 min.           11.5
max. 0.15 1.0 1.00 0.040 0.030 13.5   0.75
446 min.           23.0     0.10
max. 0.2 1.5 0.75 0.040 0.030 30.0   0.50 0.25
904L min.           19.0 4.00 23.00 0.10
max. 0.20 2.00 1.00 0.045 0.035 23.0 5.00 28.00 0.25

Stainless Steel Welded Pipes Mechanical Properties

Stainless Steel Welded Pipes are known for their high strength, durability, and resistance to corrosion. Here are some of the key mechanical properties of SS Welded Pipes:

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
304/ 304L 8.0 g/cm3 1400 °C (2550 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
304H 8.0 g/cm3 1400 °C (2550 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 40 %
310 / 310S / 310H 7.9 g/cm3 1402 °C (2555 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 40 %
306/ 316H 8.0 g/cm3 1400 °C (2550 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
316L 8.0 g/cm3 1399 °C (2550 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
317 7.9 g/cm3 1400 °C (2550 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
321 8.0 g/cm3 1457 °C (2650 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
347 8.0 g/cm3 1454 °C (2650 °F) Psi 75000 , MPa 515 Psi 30000 , MPa 205 35 %
904L 7.95 g/cm3 1350 °C (2460 °F) Psi 71000 , MPa 490 Psi 32000 , MPa 220 35 %

Stainless Steel Welded Pipes Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4301 S30409 – – – – –
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 – X15CrNi25-20
SS 310S 1.4845 S31008 SUS 310S 310S16 20Ch23N18 – X8CrNi25-21
SS 310H – S31009 – – – – –
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 – Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H 1.4401 S31609 – – – – –
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2
SS 317 1.4449 S31700 SUS 317 – – – –
SS 317L 1.4438 S31703 SUS 317L – – – X2CrNiMo18-15-4
SS 321 1.4541 S32100 SUS 321 – – – X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H – – – X12CrNiTi18-9
SS 347 1.4550 S34700 SUS 347 – 08Ch18N12B – X6CrNiNb18-10
SS 347H 1.4961 S34709 SUS 347H – – – X6CrNiNb18-12
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Stainless Steel Welded Pipes Dimension Table

PIPE SCHEDULES WALL THICKNESS (Inches)
Nominal
O.D. Inches
10s
10
40s & Std
40
80s & E.H.
80
160
1/8
.405
.049
.049
.068
.068
.095
.095

1/4
.540
.065
.065
.088
.088
.119
.119

3/8
.675
.065
.065
.091
.091
.126
.126

1/2
.840
.083
.083
.109
.109
.147
.147
.187
3/4
1.050
.083
.083
.113
.113
.154
.154
.218
1
1.315
.109
.109
.133
.133
.179
.179
.250
1 1/4
1.660
.109
.109
.140
.140
.191
.191
.250
1 1/2
1.900
.109
.109
.145
.145
.200
.200
.281
2
2.375
.109
.109
.154
.154
.218
.218
.343
2 1/2
2.875
.120
.120
.203
.203
.276
.276
.375
3
3.500
.120
.120
.216
.216
.300
.300
.437
3 1/2
4.000
.120
.120
.226
.226
.318
.318

4
4.500
.120
.120
.237
.237
.337
.337
.531
4 1/2
5.000

.247

.355

5
5.563
.134
.134
.258
.258
.375
.375
.625
6
6.625
.134
.134
.280
.280
.432
.432
.718
7
7.625

.301

.500

8
8.625
.148
.148
.322
.322
.500
.500
.906
9
9.625

.342

.500

10
10.750
.165
.165
.365
.365
.500
.593
1.125
11
11.750

.375

.500

12
12.750
.180
.180
.375
.406
.500
.687
1.312
14
14.000
.188
.250
.375
.437
.500
.750
1.406
16
16.000
.188
.250
.375
.500
.500
.843
1.593
18
18.000
.188
.250
.375
.562
.500
.937
1.781

Get a Quote

+91 77387 24848

info@newerapipefittings.com

+91 22 6743 8363


Applications and Uses of Stainless Steel Welded Pipes

  • Stainless Steel Welded Pipes Uses for Oil & gas industry
  • Stainless Steel Welded Pipes Uses for Marine Engineering Processing
  • Stainless Steel Welded Pipes for the Fencing
  • Stainless Steel Welded Pipes Uses for Automobile Sector
  • Stainless Steel Welded Pipes Uses for Water And Gas Conveyance
  • Stainless Steel Welded Pipes Uses for Aerospace, Water Treatment Plant, Water Desalination Plant, Agriculture
Industry We Supply Pipe Fittings Products

Stainless Steel Welded Pipes Additional Information

  1. SS Welded Pipes Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
  2. Stainless Steel Welded Pipes Packaging: SS Welded Pipes is packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
  3. SS Welded Pipes Port of Dispatch: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
  4. Stainless Steel Welded Pipes Tax:18% GST

Stainless Steel Welded Pipes Supplier in India:-

The dependability and performance of Stainless Steel Welded Pipes have made New Era Pipes & Fittings one of India's leading manufacturers. Every month, we supply/export Stainless Steel Welded Pipes to Indian ports in the amount of fifty-five containers to various customers. In India, we supply products in a variety of cities.
