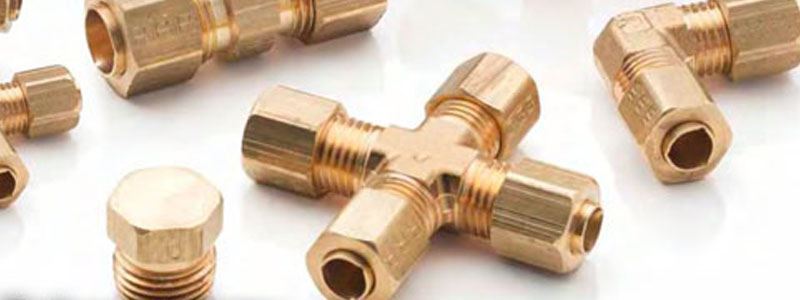

Copper Nickel Cu-Ni 90/10 Compression Fittings Manufacturer & Supplier in India

Copper Nickel Cu-Ni 90/10 Compression Fittings Manufacturer, Supplier, and Stockist in India - New Era Pipes & Fittings

New Era Pipes & Fittings is one of the largest Copper Nickel Cu-Ni 90/10 Compression Fittings Manufacturer in India. Additionally, under the supervision of our experienced personnel, our Cu-Ni 90/10 Compression Fittings are created with the idea that they should be able to maintain their strength even at doubtfully high temperatures, increasing their utility for industrial uses.

In addition to Copper Nickel Cu-Ni 90/10 Compression Fittings strong resistance to many types of seawater corrosion and pipework, our Copper Nickel 90/10 Compression Fittings are frequently used in seawater condenser systems and desalination facilities in a variety of chemical plants.

Copper Nickel Cu-Ni 90/10 Compression Fittings Manufacturer, ASTM B122 Copper Nickel 90/10 Compression Tube Fittings Supplier, UNS C70600 Compression Fittings, Cu-Ni 90/10 Bulkhead Union Exporter, Copper Nickel Cu-Ni 90/10 Compression Fittings Stockist in India

New Era Pipes & Fittings is primarily concerned with industry requirements. We create these Copper Nickel 90/10 Compression Fittings with added advantages and functionality to fulfill the industrial needs and demand. Also, we are well known Copper Nickel Cu-Ni 90/10 Compression Fittings Supplier in India.

One of the key features of Cu-Ni 90/10 Compression Fittings is their resistance to cracking and failure under extreme pressure and temperature conditions. We are also regarded as one of the major Copper Nickel Cu-Ni 70/30 Compression Fittings Manufacturer in India.

Copper Nickel Cu-Ni 90/10 Compression Fittings Size & Specifications

Cu-Ni 90/10 Compression Fittings are available in various sizes and specifications to suit different applications. Copper Nickel 90/10 Compression Fittings process creates a dense, uniform structure that provides the fittings with exceptional strength and durability.

Cu-Ni 90/10 Compression Fittings	Specifications
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Sizes	1/8’’ to 2’’ and 3mm to 50mm
Specification	ASME SB467/467M, ASTM B467/467M
Grade	Cu-Ni 90/10
Ends	Threaded, Welding, JIC
Pressure Rating	3000 & 6000
Threads	NPT , BSPT, BSPP
Form	Union, Elbow, Hex Nipple, Elbow, Cap, Adapter, Tee etc
Application	Heat Exchangers, Instrumentation, Hydraulic & Pneumatic system, Nuclear Power Plants, Automotive industries, Aerospace, Medical, Pharmaceutical.

Top Selling Copper Nickel Cu-Ni 90/10 Compression Fittings

Copper Nickel Cu-Ni 90/10 Compression Fittings are an important component in various industrial applications. There are different types of Cu-Ni 90/10 Compression Fittings that are designed to meet specific industrial requirements. Some of the common types include:

Copper Nickel Cu-Ni 90/10 Compression Fittings Manufacturer

Copper Nickel Cu-Ni 90/10 Compression Fittings
Supplier

Copper Nickel Cu-Ni 90/10 Compression Fittings
Stockist

Copper Nickel Cu-Ni 90/10 Compression Fittings Chemical Composition

The chemical composition of Copper Nickel 90/10 Fittings is critical in determining the material's strength, durability, and corrosion resistance.

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cupro Nickel 90/10	88.6 min	1.0 max	0.05 max	9-11 max	1.8 max	1 max

Copper Nickel Cu-Ni 90/10 Compression Fittings Mechanical Properties

The mechanical properties of Copper Nickel 90/10 Fittings are critical in determining the material's strength, ductility, and toughness. The mechanical properties of Cu-Ni 90/10 Compression Fittings are as follows:

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Cu-Ni 90/10 Compression Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Cupro Nickel 90/10	2.0872	C70600

Cu-Ni 90/10 Compression Fittings Size Range

Tube Fittings Types	Size OD	Size Inch
Tube To Union	6mm to 38mm	1/4" to 1 1/2"
Tube to Male Fittings
Tube to Female Fittings
Tube to Pipe Fittings
Tube Fittings Accessories

Get a Quote

+91 77387 24848

info@newerapipefittings.com

+91 22 6743 8363

Copper Nickel Cu-Ni 90/10 Compression Fittings Additional Information

1. Copper Nickel 90/10 Compression Fittings Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
2. Copper Nickel 90/10 Compression Fittings Packaging: Cu-Ni 90/10 Compression Fittings is packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
3. Copper Nickel 90/10 Compression Fittings Port of Dispatch: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
4. Copper Nickel 90/10 Compression Fittings Tax:18% GST
