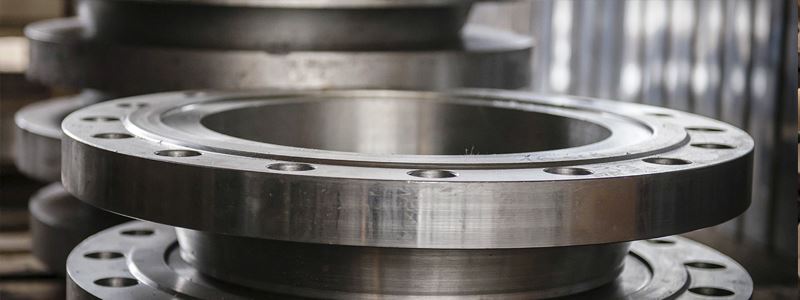

DIN Flanges Manufacturer in India

DIN Flanges Manufacturer in India - New Era Pipes & Fittings

New Era Pipes & Fittings is India's largest Manufacturer of DIN Flanges.DIN Flanges is one of our most popular Metal Market goods. DIN Flanges come in a range of sizes, shapes, and dimensions, and they can also be modified to match our customer's specific requirements. We deliver DIN Flanges in the proper number and with suitable quality to meet the needs of various industrial sectors.

DIN Flanges Manufacturer, DIN Flanges Exporter, DIN ANSI/ASME Flange Series, DIN Threaded Flange, DIN Flange Stockist in India

New Era Pipes & Fittings is primarily concerned with industry requirements. We create these DIN Flanges with added advantages and functionality to fulfill the industrial needs and demand. To maintain consistency and verify that all conditions are met, they conduct destructive and non-destructive inspections. There are different types of DIN Flanges such as DIN Slip-on Flange, DIN Blind Flange, DIN Weld Neck Flange and many more.

Other Types of Flanges

DIN Flanges Specifications

DIN Flanges	Specifications
Standard	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, DIN4504, DIN 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, DIN Flanges, DIN Flanges, EN Flanges, GOST Flanges.
Class	150 DIN, 300 LDIN, 600 LDIN, 900 LDIN, 1500 LDIN, 2500 LDIN ASA 150, ASA 300, DIN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
Size	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Grades
Stainless Steel	ASTM /ASME A/SA 213 / 249 / 269 / 312 / 358 CL. I to V – 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L .
Duplex Steel	ASTM/ASME A/SA 789, 790 – UNS NO S 31803, S 32205, S 32550, S 32750, S 32760.
Carbon Steel	ASTM A106 Gr. A, B & C API 5L Gr. A / B, X42 ,X52 ,X60 ASTM A 53 Gr. A/B
Alloys Steel	ASTM /ASME A/SA 213 / 335 / 691 – P5,P9,P11,P12,P22,P91
Nickel Alloys	Nickel Alloys 200, Nickel Alloys 201
Hastelloy	Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Inconel	Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Brass	C 27000, C 27200, C 28000
Aluminium	6063, 6061T6/T651, 6082 T6/T651, 5052, 5083, 5086, 7075, 1100, 2014, 2024
SMO 254	SMO 254

Applications and Uses of DIN Flanges

DIN Flanges Uses for Pipeline engineering
DIN Flanges Uses for Oil & gas industry
DIN Threaded Flanges Uses for Mechanical engineering
DIN Flanges for Plant engineering
DIN Slip On Flanges Uses for Marine industry
DIN Flanges Uses for the Chemical industry
DIN Socket Weld Flanges Uses for Petrochemical industry
DIN Flanges Uses for the Power industry
DIN Flanges Uses for Aerospace, Water Treatment Plant, Water Desalination Plant

Other Products :

DIN Flanges Dimensions

RATING	NOMINAL PIPE SIZE mm	OD FLANGE O	FLANGE THICKNESS WELD NECK QA	FLANGE THICKNESS BLIND QB	OVERALL HEIGHT YY	RF DIAMETER R	HUB DIAMETER X	NECK DIAMETER AW	PCD P	NO. OF BOLT HOLES N	DIAMETER HD
150	650	785	41.4	44.6	89	711	684	661.9	744.5	36	22.3
	700	835	44.6	47.8	96	762	735	712.7	795.3	40	22.3
	750	885	44.6	50.9	100	813	787	763.5	846.1	44	22.3
	800	940	46.2	54.1	108	864	840	814.3	900.1	48	22.3
	850	1005	49.3	57.3	111	921	892	865.1	957.3	40	25.4
	900	1055	52.5	58.9	118	972	945	915.9	1009.6	44	25.4
	950	1125	54.1	63.6	124	1022	997	968.2	1070.0	40	28.5
	1000	1175	55.7	66.8	129	1080	1049	1019.0	1120.8	44	28.5
	1050	1225	58.9	68.4	134	1130	1102	1069.8	1171.6	48	28.5
	1100	1275	60.5	71.6	137	1181	1153	1120.6	1222.4	52	28.5
	1150	1340	62.0	74.6	145	1235	1205	1171.4	1284.3	40	31.7
	1200	1390	65.2	77.9	150	1289	1257	1222.2	1335.1	44	31.7
300	650	865	89.0	89.0	145	737	702	665.2	803.3	32	34.9
	700	920	89.0	89.0	150	787	756	716.0	857.2	36	34.9
	750	990	93.7	93.6	158	845	813	768.4	920.8	36	38.1
	800	1055	103.2	103.2	169	902	864	819.2	977.9	32	41.2
	850	1110	103.2	103.2	173	953	918	870.0	1031.9	36	41.2
	900	1170	103.2	103.2	181	1010	965	920.8	1089.0	32	44.4
	950	1220	111.2	111.2	193	1060	1016	971.6	1139.8	36	44.4
	1000	1275	115.9	115.9	199	1114	1067	1022.4	1190.6	40	44.4
	1050	1335	119.1	119.1	205	1168	1118	1074.7	1244.6	36	47.6
	1100	1385	127.1	127.1	215	1219	1173	1125.5	1295.4	40	47.6
	1150	1460	128.6	130.1	223	1270	1229	1176.3	1365.2	36	50.8
	1200	1510	128.6	134.9	224	1327	1278	1227.1	1416.0	40	50.8
600	650	890	111.2	111.3	181	727	698	660.4	806.4	28	44.4
	700	950	115.9	115.9	190	784	752	711.2	863.6	28	47.6
	750	1020	125.5	127.0	205	841	806	762.0	927.1	28	50.8
	800	1085	130.2	134.9	216	895	860	812.8	984.2	28	53.9
	850	1160	141.3	144.2	233	953	914	863.6	1054.1	24	60.3
	900	1215	146.1	150.9	243	1010	968	914.4	1104.9	28	60.3
900	650	1020	135.0	154.0	259	762	743	660.4	901.7	20	66.6
	700	1105	147.7	166.7	276	819	797	711.2	971.6	20	73.0
	750	1180	155.6	176.1	289	876	851	762.0	1035.0	20	79.3
	800	1240	160.4	186.0	303	927	908	812.8	1092.2	20	79.3
	850	1315	171.5	195.0	319	991	962	863.6	1155.7	20	85.7
	900	1345	173.1	201.7	325	1029	1016	914.4	1200.2	24	79.3

Types of DIN Flanges
